NOMINAL SIZE
(Inch) |
ID x OD
(mm)
|
Standard
Length |
3/16 |
5 x 11 |
100 M |
1/4 |
6 x 13 |
100 M |
5/16 |
8 x 15 |
100 M |
3/8 |
10 x17 |
100 M |
|
Working Pressure : 20 BAR
Bursting Pressure : 60 BAR ( 900 PSI ) |
|
|
|
|
|
|
|
|
|
 |
|
¡E |

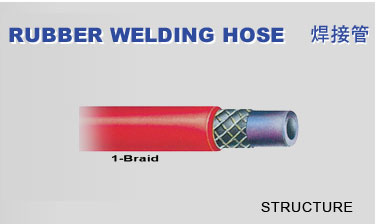

1-Braid(one layer) of high tensile strength polyester cords woven in the tube made by synthetic rubber |
¡E |
Non-distortion, flexibility and nicely smooth surface |
¡E |
Oxygen hose and Acetylene hose are good resistance to pressure & abrasion for uses in the industry |
¡E |
Single hose and Twin-Line hose are available in the production |
¡E |
Colour: Oxygen(GREEN or BLUE or BLACK) |
¡E |
Colour: Acetylene(RED or BRICK RED) |
¡E |
Twin-Line Hose(GREEN with RED) |
|
|
|
 |
|
¡E |
For conveying liquid, air & gas etc. in the industry and other special uses |
¡E |
Twin-Line hose is conveying of two kinds of gas or liquid at the same time |
|
¡@
¡@ |
|
¡@ |
 |
