NOMINAL SIZE (inch) |
WALL
THICKNESS |
ID X OD
(m / m) |
PRESSURE at 20¢XC |
STANDARD
LENGTH
( M ) |
|
WORKING
( kg/cm2 ) |
BURSTING
( kg/cm2 ) |
|
5 / 16 |
2.5 |
8 X 13 |
10 |
40 |
100 |
|
3 /8 |
2.5 |
9 X 14 |
9 |
35 |
100 |
|
1 / 2 |
3 |
12 X 18 |
10 |
40 |
100 |
|
5 / 8 |
3 |
16 X 22 |
10 |
40 |
100 |
|
3 / 4 |
3.5 |
19 X 26 |
8 |
35 |
100 |
|
7 / 8 |
3.75 |
22X29.5 |
8 |
35 |
100 |
|
1 |
4 |
25 X 33 |
7 |
30 |
100 |
1-1 / 4 |
4.5 |
32 X 41 |
5 |
20 |
100 |
|
1-1 / 2 |
4.5 |
38 X 47 |
4 |
15 |
50 |
|
1-5 / 8 |
5 |
41 X 51 |
4 |
15 |
50 |
|
1-3 / 4 |
5 |
45 X 55 |
3.5 |
15 |
50 |
|
1-7 / 8 |
5.5 |
48 X 59 |
3.5 |
15 |
50 |
|
|
|
Other sizes as 3/16¡¨, 1/4¡¨ , 2¡¨ are also available as follows: |
|
NOMINAL SIZE (inch) |
WALL
THICKNESS |
ID X OD
(m / m) |
PRESSURE
at 20¢XC |
STANDARD
LENGTH
( M ) |
|
WORKING
( kg/cm2
) |
BURSTING
( kg/cm2
) |
|
3 / 16 |
2 |
5 X 9 |
10 |
40 |
100 |
|
1 / 4 |
2 |
6 X 10 |
10 |
40 |
100 |
|
1 / 4 |
2.5 |
6 X 11 |
15 |
60 |
100 |
|
2 |
5 |
50 X 60 |
2.5 |
10 |
100 |
|
2 |
6 |
50 X 62 |
4 |
15 |
100 |
|
|
|
|
 |
|
|
¡E |
Good for general uses as supplying water to all works of construction, industry, fishery, agriculture and so on. |
|
¡E |
Drainage system on machines and equipment.
|
|
¡E |
Conveying air, fluid, liquid to the appliances. |
|
¡E |
Delivering the powder and granular substances to the production lines in the factory. |
|
|
|
|
|
 |
|
|
¡E |
No inferior or re-cycled materials adopted, all materials are new, pure and clean. |
|
¡E |

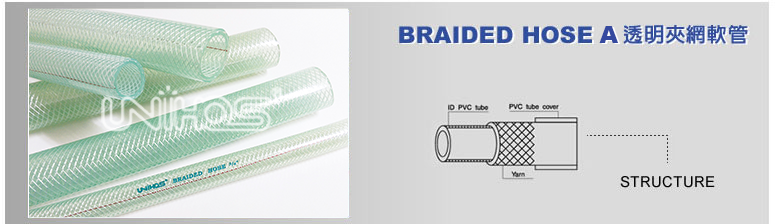

Transparent PVC body with braided polyester yarns in different grades varying with the sizes accordingly. |
|
¡E |
Excellent quality. |
|
| ¡@ ¡@ |
|
¡@ |
 |
