NOMINAL SIZE (I.D.) |
STANDARD
LENGTH
( M ) |
PRESSURE at 20¢XC |
TOLERABLE
BENDING
RADIUS
(m/m ) |
|
m / m |
inch |
WORKING
( kg/cm2 ) |
BURSTING
( kg/cm2 ) |
|
38 |
1-1/2 |
30 |
6.0 |
19.0 |
150 |
|
50 |
2 |
30 |
6.0 |
19.0 |
160 |
|
65 |
2-1/2 |
30 |
5.5 |
17.5 |
180 |
|
75 |
3 |
30 |
5.5 |
17.5 |
210 |
|
100 |
4 |
30 |
5.0 |
16.0 |
270 |
|
125 |
5 |
20 |
5.0 |
16.0 |
350 |
|
150 |
6 |
20 |
4.5 |
14.0 |
420 |
|
200 |
8 |
10 |
4.0 |
13.0 |
480 |
|
|
|
|
|
|
|
|
 |
|
|
¡E |

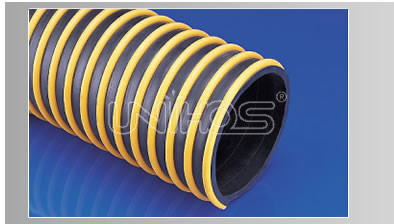

Superior resistance against abrasion due to specially developed
materials. |
|
¡E |
Good
resistance against heat and cold. |
|
|
|
|
|
 |
|
|
¡E |
For
various use in industrial plants, shipbuilding, and
civil-engineering works. |
|
¡E |
For
pressure conveyance and suction of grains, sand, cement, and iron
ore etc. |
|
¡E |
For
transportation of various powder and granule. |
|
| ¡@ ¡@ |
|
¡@ |
 |
