(A) UNIHOSE

NOMINAL SIZE (inch)

INSIDE

DIA

(m / m)

WALL

THICKNESS

(mm)

PRESSURE at 20¢XC

STANDARD

LENGTH

 ( M )

WORKING

( kg/cm2 )

BURSTING

( kg/cm2 )

1

25 + 2

1.20 + 0.2

5.0

15.0

100

1- 1/4

32 + 2

1.20 + 0.2

4.5

14.0

100

1- 1/2

40 + 2

1.20 + 0.2

4.5

13.0

100

2

50 + 2

1.20 + 0.2

4.5

13.0

100

2- 1/2

65 + 2

1.30 + 0.2

3.5

11.0

100

3

77 + 2

1.35 + 0.2

3.5

10.0

100

4

103 + 3

1.35 + 0.2

3.0

10.0

100

5

128 + 3

1.60 + 0.2

3.0

9.0

100

6

153 + 3

1.60 + 0.2

3.0

9.0

100
8

207 + 3

2.00 + 0.2

3.0

9.0

100
10

256 + 3

2.30 + 0.2

2.0

7.0

50

(B) SUPRA HOSE

NOMINAL SIZE (inch)

INSIDE

DIA

(m / m)

WALL

THICKNESS

(mm)

PRESSURE at 20¢XC

STANDARD

LENGTH

 ( M )

WORKING

( kg/cm2 )

BURSTING

( kg/cm2 )

1

25 + 2

1.00 + 0.2

2.5

10

100

1- 1/4

32 + 2

1.00 + 0.2

2.5

10

100

1- 1/2

40 + 2

1.00 + 0.2

2.5

10

100

2

50 + 2

1.00 + 0.2

2

8.5

100

2- 1/2

65 + 2

1.10 + 0.2

2

8.5

100

3

77 + 2

1.10 + 0.2

2

7.5

100

4

103 + 3

1.10 + 0.2

1.5

5

100

5

128 + 3

1.20 + 0.2

1.2

4

100

6

153 + 3

1.40 + 0.3

1.2

4

100

8

207 + 3

1.40 + 0.3

1.2

4

100

¡E

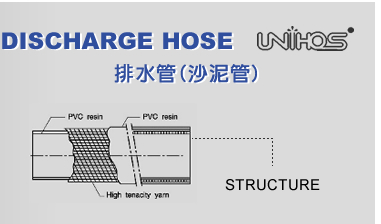

Excellent durability due to woven with high tenacity polyester in it, endures strong water pressure.

¡E

Under any weather conditions, remains soft and pliable. No appearance of rust or corrosion for long service life.

¡E

Very flexible and compact, is easy to set up, transport, mend, cut and connect.

¡E

Construction: Concrete chutes, Boring, De-Watering, Pile-Driving, Hydraulicking.

¡E

Agriculture: Irrigation, Grain chutes, Sprinkling.

¡E

Municipalities: Fire-Fighting, Emergency sewage & flood lines.

¡E

Mining: De-Watering, Pumping, Dust chutes, Waste-water disposal.

¡E

Marine: Unloading vessels, Sub-marine exploration.
¡@

¡@
¡@
