| 1-Braid |
NOMINAL SIZE (inch) |
Wall
Thickness |
ID X OD
(m / m) |
Bursting Pressure
guaranteed (PSI) |
STANDARD
LENGTH
|
3/16 |
3mm |
5 x 11 |
900 |
100 M |
1/4 |
3mm |
6 x 12 |
900 |
100 M |
5/16 |
3.5mm |
8 x 15 |
900 |
100 M |
3/8 |
3.5mm |
9.5 x 16.5 |
900 |
100 M |
1/2 |
3.5mm |
12.7 x 19.7 |
900 |
100 M |
5/8 |
4mm |
16 x 24 |
900 |
50M |
3/4 |
4.5mm |
19 x 28 |
900 |
50M |
1 |
5mm |
25 x 35 |
900 |
50M |
|
| 2-Braid |
NOMINAL SIZE (inch) |
Wall
Thickness |
ID X OD
(m / m) |
Bursting Pressure
(PSI) |
STANDARD
LENGTH
|
1/4 |
3.5mm |
6 x 13 |
1200 |
100 M |
5/16 |
4mm |
8 x 16 |
1200 |
100 M |
3/8 |
4mm |
9.5 x 17.5 |
1200 |
100 M |
1/2 |
4mm |
12.7 x 20.7 |
1200 |
100 M |
5/8 |
4.5mm |
16 x 25 |
1100 |
50M |
3/4 |
5.5mm |
19 x 30 |
1100 |
50M |
1 |
6mm |
25 x 37 |
1000 |
50M |
1-1/4 |
6mm |
32 x 44 |
600 |
30M |
1-1/2 |
6.5mm |
38 x 51 |
600 |
30M |
2 |
7mm |
50 x 64 |
600 |
30M |
|
| |
Colour: BLACK
Other colours can be arranged in the production |
|
|
|
|
|
|
 |
|
¡E |

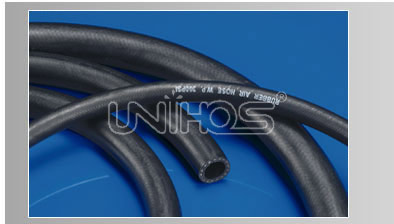

Tubes made by synthetic rubber and reinforced by the high tensile strength polyester cords |
¡E |
Non-distortion, flexibility and nicely smooth surface |
¡E |
Good resistance to pressure and abrasion |
¡E |
1-Braid hose is described as one layer of strong polyester cords woven |
| ¡E |
2-Braid hose is described as two layers of strong polyester cords woven |
|
|
|
 |
|
¡E |
For delivering of gas, water, oil, acid and alkali etc. under normal temperature |
¡E |
For service in quarry, mining, civil engineering, ship building, steel and general industries |
|
| ¡@
¡@ |
|
¡@ |
 |
