Type (A) |
|
NOMINAL SIZE |
ID X OD
(m / m) |
PRESSURE
at 20¢XC |
STANDARD
LENGTH
( M ) |
|
WORKING
( kg/cm2 ) |
BURSTING
( kg/cm2 ) |
|
7.5 mm |
7.5 x
13.5 |
50 |
160 |
100 |
|
8.5 mm |
8.5 x
14.5 |
50 |
160 |
100 |
|
10 mm |
10 x 16 |
50 |
150 |
100 |
|
13 mm |
13 x 20 |
40 |
130 |
100 |
|
16 mm |
16 x 24 |
40 |
120 |
100 |
|
19 mm |
19 x 28 |
40 |
120 |
100 |
|
25 mm |
25 x 35 |
40 |
120 |
50 |
|
|
|
Type (B) |
|
NOMINAL SIZE (inch) |
ID X OD
(m / m) |
PRESSURE
at 20¢XC |
STANDARD
LENGTH
( M ) |
|
WORKING
( kg/cm2
) |
BURSTING
( kg/cm2
) |
|
7.5 mm |
7.5 x
13.5 |
30 |
100 |
100 |
|
8.5 mm |
8.5 x
14.5 |
30 |
100 |
100 |
|
|
 |
|
|
|
 |
|
|
¡E |

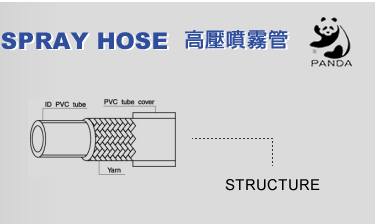

Reinforced with strong tenaciously polyester fabric yarns. |
|
¡E |
Designed for enduring medium to high pressure spraying
applications with an inner wall that is resistant to most
solvent-based chemical sprays. |
|
¡E |
Highly
flexible and easy to handle. |
|
¡E |
Every
metre of length is marked on the hose. |
|
¡E |
Each
roll packed by a carton. |
|
¡E |
2 size
( 7.5mm and 8.5mm ) come with couplings. |
|
¡E |
Other
sizes as 10mm and 13mm etc. can be fixed with couplings upon
buyer's request. |
|
|
|
|
|
 |
|
|
¡E |
For
spraying chemicals as insecticide, fungicide and detergent etc.
in agricultural fields and others. |
|
¡E |
For
high pressure air-compressors. |
|
¡E |
For
machines used in mining, road construction etc. |
|
¡E |
For
strong watering equipments used in washing ships, vehicles and
others etc. |
|
| ¡@ ¡@ |
|
¡@ |
 |
