NOMINAL SIZE (  I.D. )

STANDARD

LENGTH

 ( M )

PRESSURE at 20XC

m / m

inch

WORKING

( kg/cm2 )

BURSTING

( kg/cm2 )

38

1-1/2

4

4.0

12.0

50

2

4

4.0

12.0

65

2-1/2

4

3.5

10.5

75

3

4

3.0

9.0

100

4

4

2.8

8.5

125

5

4

2.5

7.5

150

6

4

2.3

7.0

200

8

4

2.0

6.0

250

10

4

1.6

5.0

300

12

4

1.5

4.5

E

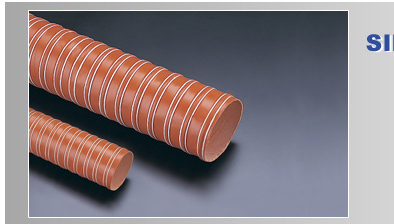

Smooth inner ply and cover ply of silicone-coated the woven fiberglass.

E

Superior air flow and minimum friction loss.

E

Chemically-treated, helically-wound spiral steel wire for flexibility.

E

Double, continuous filament, silicone-coated treated fiberglass cord.

Vulcanized for long service life. Abrasive-resistant cover and liner available.

E

Light weight, non-kinking.

E

Temperature range: -20XC + 220XC

E

Not recommended for handling liquid or abrasive materials.

E

Designed for enduring medium-high pressure handling of air, dust, fume and light powder.

@

@

@
